YOUSU 3D Metalic Structural Color Resin
1. Inspiration for this product.
Although we often think of beetles as garden pests or garden protectors, many cultures use parts of dazzling, colorful beetles as ornamentation for ceremonial costumes and headdresses, as well as in precious jewelry.
Just as structural color is responsible for the beautiful shimmering blue of neotropical Morpho butterflies, it is also responsible for the glistening iridescent colors of many tropical beetles.
The epicuticle, or outermost surface, of iridescent beetles, is made of many stacks of slanting, plate-like layers, which are oriented in different directions. These layers bend and then reflect the incoming light like the ridges of iridescent butterfly and moth scales. Similarly, they produce structural colors by interference in the same way as butterfly wings. A layer of pigment below the refractive plates of beetles and the ridges of iridescent butterfly scale enhances the effect of the luminescence. In some species, the epicuticle acts as a reflection diffraction grating to cause iridescence.
Most insect structural colors are in the green-blue-violet range, but red, gold, and copper colors may also be produced in this way. The shade of color and its intensity are determined by several factors, including the thickness and spacing of the layers of the scales, or epicuticle, the number of these layers, and the angle of the incoming light.
The bionics always give us lots of inspiration. Based on bionics, we developed a helicopter, an electronic frog eye ... A similar story happened on this product. Why many coleopteran insects can display different color from different angles? After a few months of thought and development, the Metallic Structure Color series resin was born.
We hope this Kind of resin makes 3d printing hobbyists more color choices for their creation. Also, we hope it can help someone who is not good at painting their models. We can compare the colors between real insects, 3d printing painting, and YOUSU 3D Metalic structural color resin.
1. Real insects
2. 3D printing painting

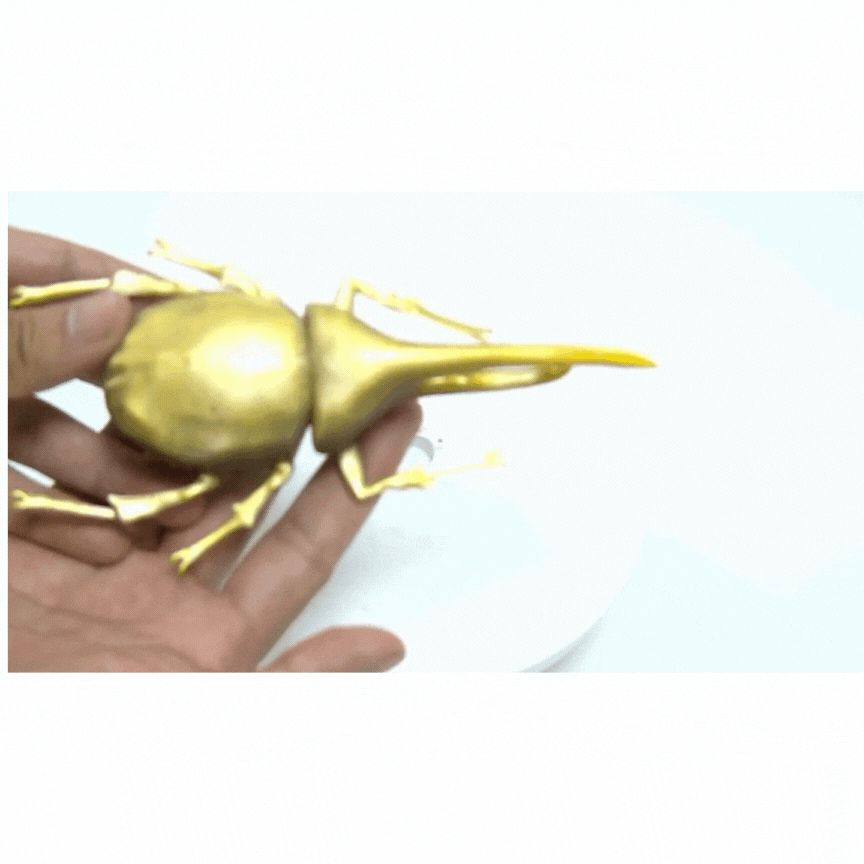

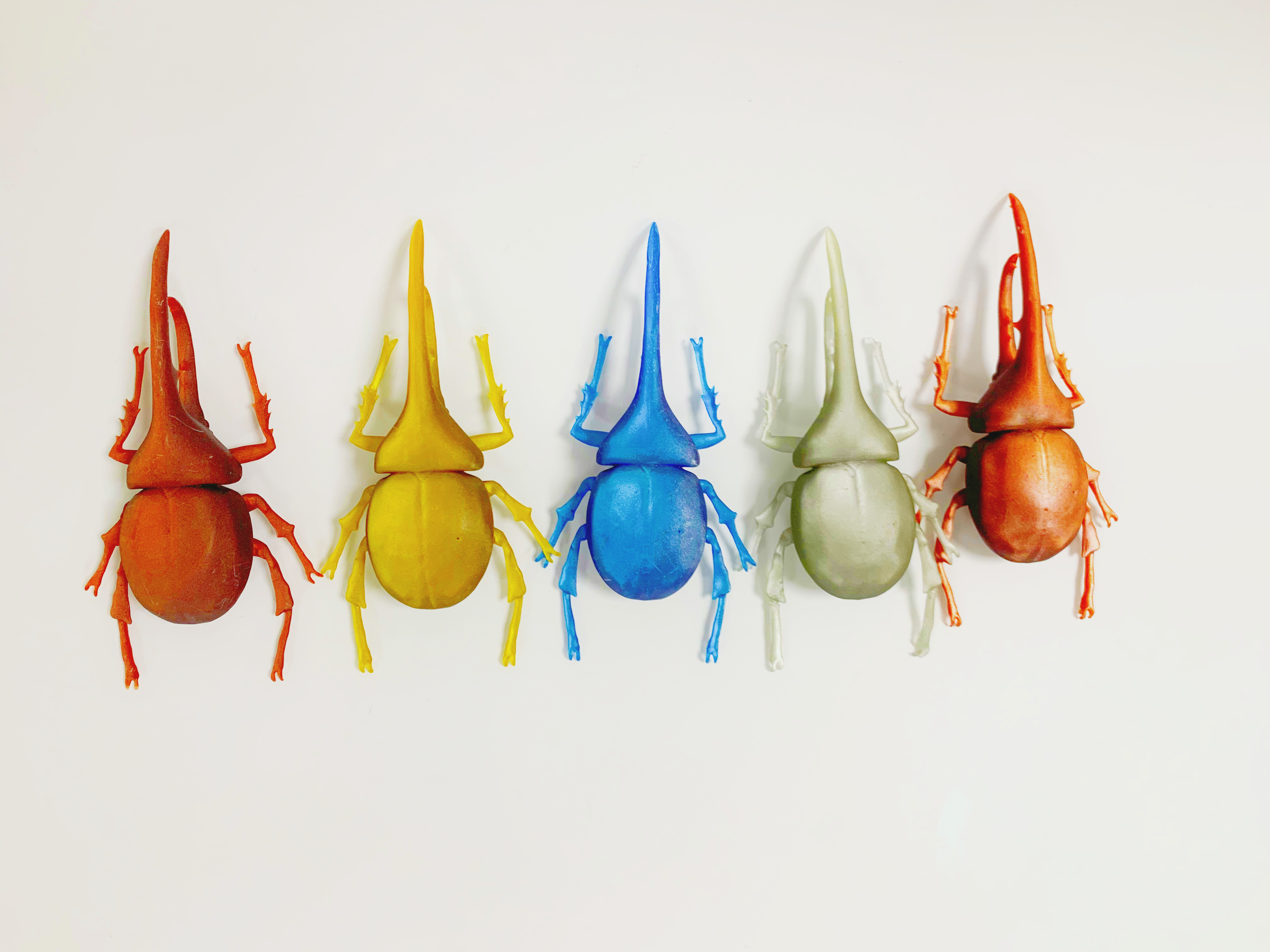

3. YOUSU 3D Metalic structural color resin Roseo gold/Blue Zinc/Warlock BronzeSilver
Feature：
It combines structural color and pigmental color. You can view metallic color at one angle and normal color at another. That’s the most fantastic point.
Application:
1, This series resin is good for armor and helmet printing. For those 3d resin printing users who isn’t good at painting or want to save painting time for some parts, Metalic structural color resin can benefit them a lot.
It’s not only a design but also a challenge for the Prints.
So how to get metal color surface performance?
Find the best Angles. Before printing you’d better consider which angle of the model parts, you want to have shiny metal surface. As metallic color at one angle and normal color at another.
Any advice for us to choose the 3d models?
Choose thin thickness and flat models. In theory, if the printing you want is more flat with thinner thickness, the metal color effect can color the whole surface. So we can try to print some mask, coins, shield, sword and so on .
What applications can we apply with this resin?
It is fit for some art design shows. Print-assembled models are a good choice, with different colors mixed together, you can get incredible group effects.
Is Metalic structural color resin easy to print?
Yes, it is one of the standard resins which has high hardness and good detail performance.
It can fit most 4/6/8/12 K 3d printers in the Market such as Anycubic/Elegoo/
Pronzen, Formlabs, and other405nm LCD/DLP printers.
Are there any properties for reference?
Tips Before Printing
Metallic resin is a structure color change resin. It will change the color when you look at the model from different angles. So you need to keep the surface you want to be metallic parallel to the platform. Printing time for each color, because the shading degree of each color pigment is different, the printing time is a little different.
Regarding the lift distance for the bottom, we recommend higher-than-normal resin at least 12mm. Also, the lift distance for printing we recommend is 10mm to avoid falling down issues.
1. Roll the bottle sightly t before pouring the resin into the VAT. Because the metallic resin is mixed with special pigment, it is more easily to have pigment sediment if left for a long time.
2. Also when you have constant several-time printing, you need to stir the resin in the VAT with a plastic scraper
About YOUSU 3D
1, This series resin is good for armor and helmet printing. For those 3d resin printing users who isn’t good at painting or want to save painting time for some parts, Metalic structural color resin can benefit them a lot.
It’s not only a design but also a challenge for the Prints.
So how to get metal color surface performance?
Find the best Angles. Before printing you’d better consider which angle of the model parts, you want to have shiny metal surface. As metallic color at one angle and normal color at another.
Any advice for us to choose the 3d models?
Choose thin thickness and flat models. In theory, if the printing you want is more flat with thinner thickness, the metal color effect can color the whole surface. So we can try to print some mask, coins, shield, sword and so on .
What applications can we apply with this resin?
It is fit for some art design shows. Print-assembled models are a good choice, with different colors mixed together, you can get incredible group effects.
Is Metalic structural color resin easy to print?
Yes, it is one of the standard resins which has high hardness and good detail performance.
It can fit most 4/6/8/12 K 3d printers in the Market such as Anycubic/Elegoo/
Pronzen, Formlabs, and other405nm LCD/DLP printers.
Are there any properties for reference?
Tips Before Printing
Metallic resin is a structure color change resin. It will change the color when you look at the model from different angles. So you need to keep the surface you want to be metallic parallel to the platform. Printing time for each color, because the shading degree of each color pigment is different, the printing time is a little different.
Regarding the lift distance for the bottom, we recommend higher-than-normal resin at least 12mm. Also, the lift distance for printing we recommend is 10mm to avoid falling down issues.
1. Roll the bottle sightly t before pouring the resin into the VAT. Because the metallic resin is mixed with special pigment, it is more easily to have pigment sediment if left for a long time.
2. Also when you have constant several-time printing, you need to stir the resin in the VAT with a plastic scraper
About YOUSU 3D
Yousu 3D is a professional manufacturer that focuses on 3D printing filament, 3D resin, and 3D pens. Our product line
covers consumer level to professional level market. For filament from PLA to PEEK, 3d resin from water washable to
dental and castable resin for jewelry and dental resin printer, 3d pen from normal 3d pen to world first one candy pen.
As an ISO 9001 certificated company, all products are under good quality control. As a social responsibility, all behavior
meets BSCI requirements. We are proud of our R&D, more than 20 patents including 3 invent patents and we can do
ODM/OEM business.
As an ISO 9001 certificated company, all products are under good quality control. As a social responsibility, all behavior
meets BSCI requirements. We are proud of our R&D, more than 20 patents including 3 invent patents and we can do
ODM/OEM business.
