High precision 3d castable resin for jewelry 3d printer fit for DLP /LCD printer from YOUSU 3D

With the fast development of 3D printing, 3D castable printing is becoming increasingly popular.  We can see the obvious advantages of 3D printing casting brought to the market: Higher precision, good cast effect, can save more time compared to curving the wax models manually, bulk production stability, and so on. But when choosing catable resin for Jewelry casting, Many users still don't have any ideas. Here let's introduce two kinds of new 3D castable resins, IForm Cast 01 and iForm Cast 02, produced by professional 3d resin supplier, YOUSU 3D.

YOUSU 3D never stops researching and testing in 3d casting resin, and iForm Cast resin come out and has the following advantages

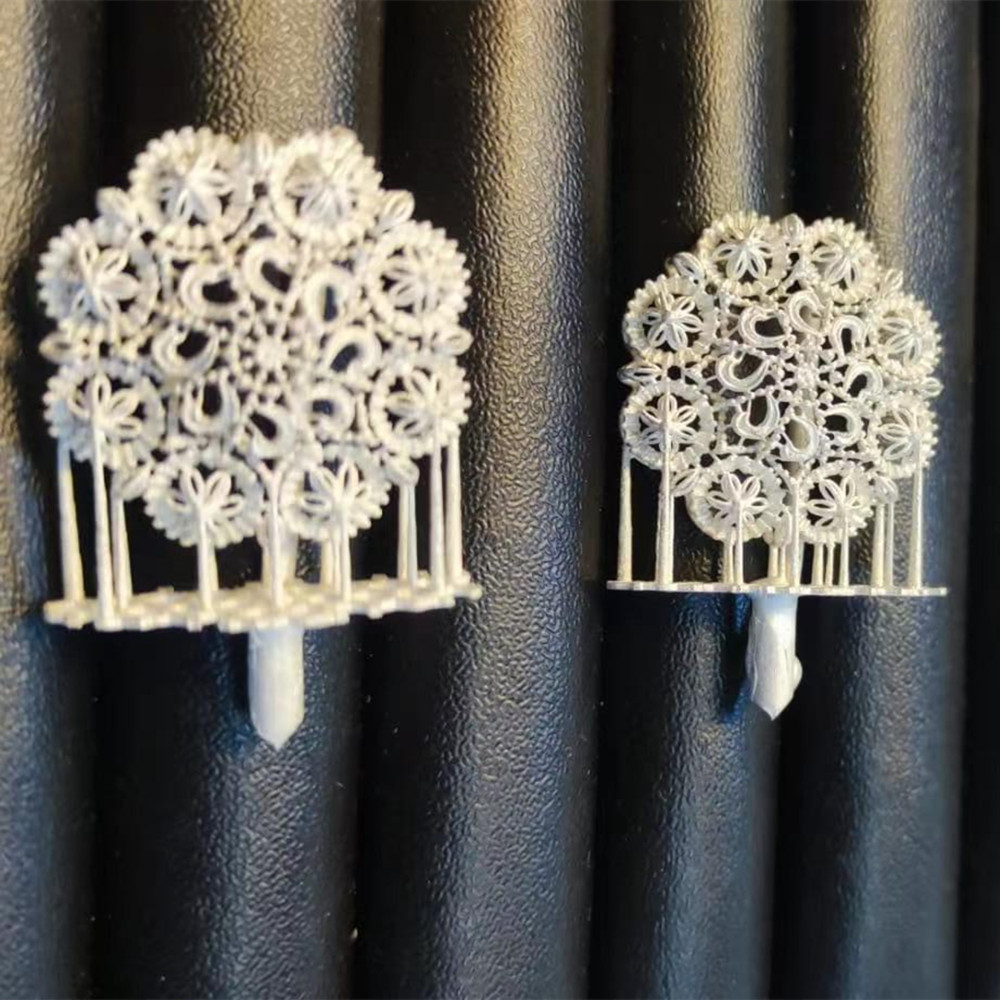

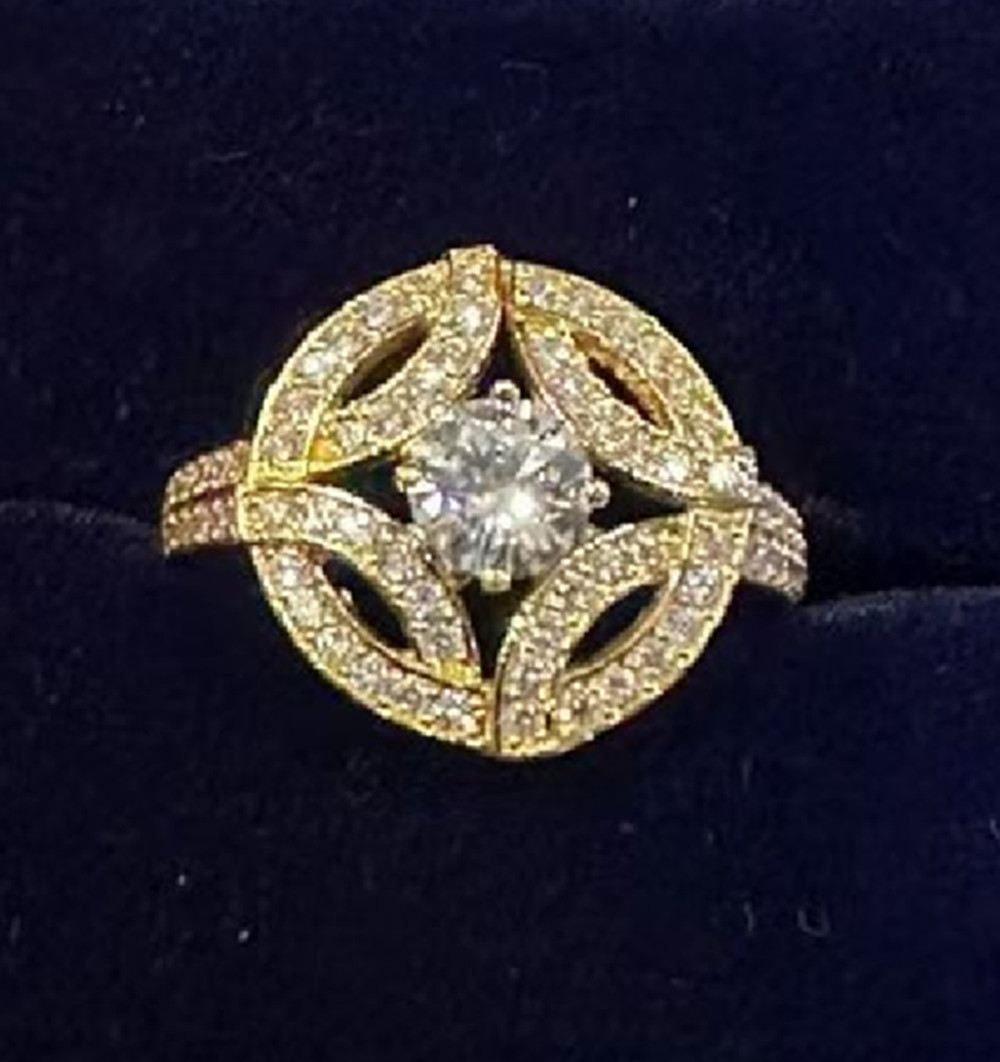

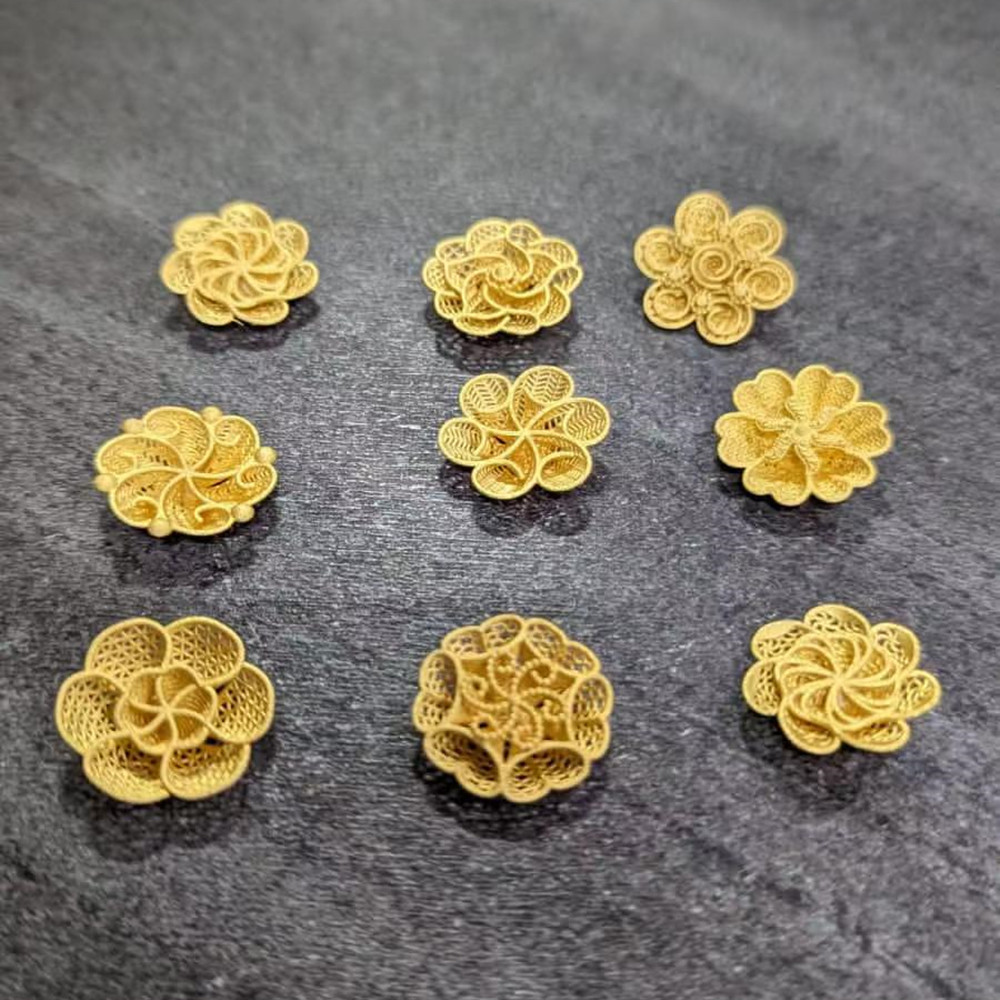

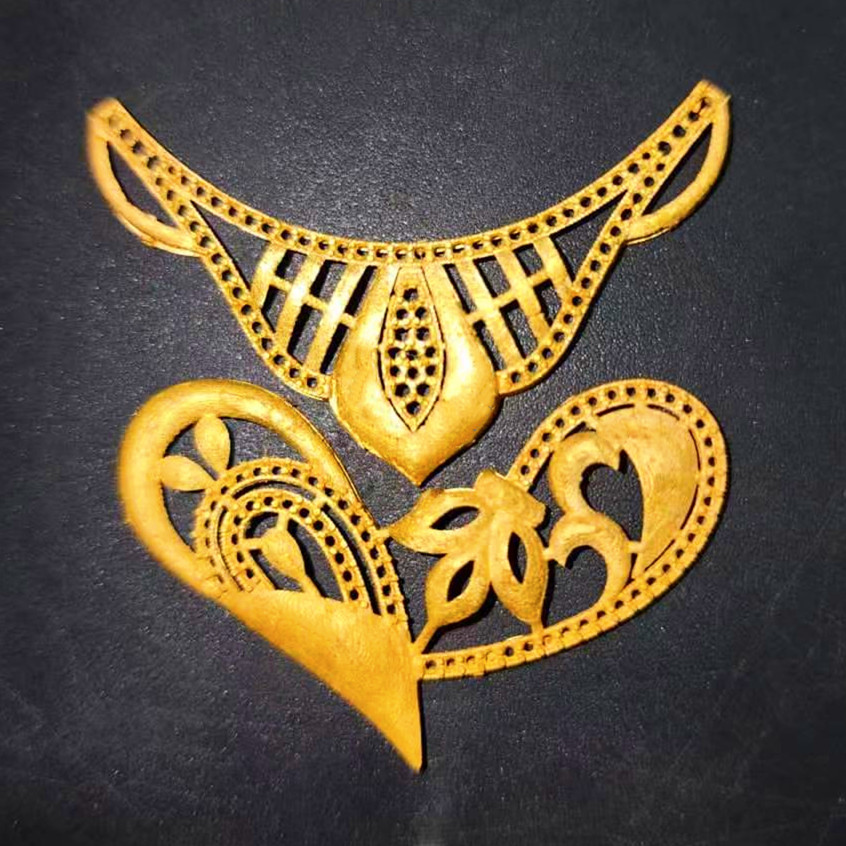

1. Perfect cast effects. For the castable resin 3d printed models, it’s the most important factor. Though it depends on the experience of the crafts, these two kinds of resin have better burned-out effects compared to other 3d resin. Here are some feedback from our customers:


2. Less exposure time on LCD 3d printers: In DLP 3D printing. each layer exposure time of a DLP 3D printer is easily more than 10-15s per layer. While using YOUSU iForm Cast 01&02 resin on LCD 3D printing, we recommend  5-7s for layer. Some even 2s-5s for some prints depending on the power rate of the printers. Of course, if operating on a DLP printer, it also needs to increase the exposure time.



3. Compatible with different kinds of 3d printers LCD printers such as Anycubic, Elegoo, Phrozen, and so on. What’s more, it can also fit for DLP 3d printers like Novafab, FlashForge, etc. This means iForm Cast 01 &02 have less printer limitation if the printer uses open resource 3d slicer software.



4. Shorter Burned out time. we the temperature is high enough(more than 1000℃), the burned-out time is shorter and the can-cast effect also comes out better. Here is the Burned Out Recycle for reference.



Tips after 3d printing：

1. Cleaning:

Use an ultrasonic cleaner equipped with alcohol（95% concentrated Ethanol (preferred) or IPA  to clean the printed model, and select the cleaning time according to the size of the model. Models with very small supports and fine details should not be allowed to vibrate in the cleaning tank for too long. . Some form of methanol should work but make sure it does not contain acetone.

Do not submerge the parts in alcohol for more than 30 seconds without any operation. After 30s-3 minutes of cleaning action, remove alcohol with a hair dryer or air blower. For complex parts with lots of cavities, it may be a good idea to clean/dry multiple times.

Dry as quickly as one can once the print is cleaned with compressed air Surface should be matte, if you see shiny spots, repeat cleaning on those spots.

2. Post-Curing:

Make sure the print is completely dry before proceeding.

It is important to fully cure Cast to ensure clean burnout.

It is also important to ensure the print does not absorb moisture as it may also affect burnout results We recommend putting the print in glycerine to speed up curing without getting water on the print.

Curing time varies with light fixture but is most likely to be over 10 minutes and longer.

AVOID USING WASH AND CURE ALL IN ONE MACHINE( Avoiding getting wet again)

Fully Cured Print Should feel harder.
